As a Google Cloud Platform certified architect I really should blog some more about my actual usage of GCP. One of my favourite tools is Dataproc as it provides a managed Spark & Hadoop environment and enables a lambda architecture suitable for complex network event processing and function remediation.
A mobile radio network is a dynamical system that can be modelled ergodically. Meaning that the radio network performance in geometrical space should be observed and modelled over a period of time. Storing this sort of data requires a geospatial datastore and a timeseries datastore. It is a huge amount of data stored as a nested map. This is why Dataproc’s ability to provide a probabilistic approach to testing a deterministic system is really useful in a remediating / self-healing mobile network.
Apache Spark provides the parallel processing of the variant datastores as Resilient Distributed Datasets (RDDs). Modelling the baseline data for geospatial topology, coverage and time-based trials is not trivial. But the fundamental processing of huge datasets for improved RAN distribution is highly challenging but eventually highly beneficial.
Most 5G deployments will not be greenfield. But a successful 5G deployment is not limited to simply deploying new radio on existing sites. It requires a new approach to telecom IT that can both simplify the telco’s estate and prepare for the new business opportunities of 5G. A complete data fabric (for 5G or for everything) will support both the business opportunities and the network complexities of 5G.
A data fabric includes all of the necessary data services for operating a mobile network and providing connectivity and ‘beyond connectivity’ services. This means offering the many different persistence storage toolsets to your business logic layer (as represented by micro-services in docker). An application can then utilise the most appropriate persistence technology for their requirements. For example, this could mean exposing a RDBMS for structured data, a Graph for modelling topologies and document storage for persisting YANG documents.
The business value of the data fabric is that it allows the clever telco to disassociate their software requirements’ from the data plane. Thus enabling a micro-service architecture that can manage a virtualised network; and then on top of that expose services to their customers.
Key data fabric use cases for 5G include:
A network planning architecture for geo-planning cell site deployments including in-building
A network topology architecture that can model a highly complex network and enable Self Organising Networks
A time series streaming architecture that can model events coming off a network and a customer’s deployments and enable effective Machine Learning driven autonomic improvements
A network orchestration architecture for a virtualised network (full or partial)
A network slice management and guarantee architecture (with support for a blockchain based service level guarantee)
A subscriber data management architecture for unified value added services and subscription
The following is my description of a logical data fabric for a 5G implementation. I am publishing it because it can help network operators to push their software vendors to decouple the software’s logic from its data persistence. Below are all the logical tools needed:
RDBMS for ACID based transactions that are useful for physical inventories, managing subscription updates (less so reads) and all other structure data
Graph database for modelling network topologies, relationships and dependencies. Very useful for machine learning, root cause analysis and spotting previously unknown interconnected loops between items
Wide column database for dealing with unstructured extensible datasets that include all the different devices supported on a 5G network. Very useful within IoT and customer network experience.
OLTP NoSQL database for offline analytical processing including network topology efficiency modelling and network performance analysis as part of an ITIL Problem / Change Management process
Document datastore for managing Infrastructure as Code and Virtual Network Function deployment descriptors in the form of YANG documents. Useful in blockchain contracts and services.
In Memory Datastore for fast reads and data caches
Geo-spatial database for modelling RAN deployments and radio propagation. Incredibly important as RAN efficiencies have a major bottom line impact. Increasingly need to support in-building information for small cell deployments. Needs to work together with other radio technologies including 5G.
Time series database for performance monitoring which can be implemented within the customer network experience function of a wide column database and with use of Grafana and Prometheus
Some 5G Data Fabric Use Cases:
Document Data Store
In Memory Database
Network Plan & Build and Analysis
Physical Network & Static Inventory
Virtual Network & Dynamic Inventory
Fast Read Inventory
Streaming Fast Analysis
Offline Event Analysis
Subscription Management & Entitlements
In conclusion, most telcos have bought siloed commercial off the shelf products for individual specific use cases. This has meant that the telco has often only used as little as 40% of the intrinsic value of their commercial software licences. The cost of building 5G will be high, and the greater share of the prize will go to the most agile operators. It is therefore incumbent on mobile operators to drive the greatest efficiencies from their software investments.
5G is a great driver for change. The most effective 5G operators will be those that can get their data architecture right first time. Telecom operators must start moving to a data fabric.
FWA is not a new idea with 5G and has been available to anybody tethering since 3G. FWA is comparable to Fibre-to-the-Home as both are connectivity solutions for the edge of the network. 5G mmWave (~25Ghz and above) is promising an alternative to FTTH, with 1Gb per second download speeds. It is therefore worth understanding the technologies and engineering necessary to make FWA a viable or better alternative to fibre.
Verizon has targeted FWA as an alternative to FTTx with its 5G Home service launched across Houston, Indianapolis, Los Angeles and Sacramento in October 2018. Verizon estimates the 5G mmWave FWA addressable market to include 30 million premises. To be successful Verizon’s FWA has to be cheaper than the delivery of FTTx and will have to overcome some quite considerable engineering challenges. These include the roll-out of multiple 5G antennas with small-cell front-haul for extended coverage, the deployment of external to home 5G receivers, a distributed core that can host Mobile Service Edge and CDNs close to the 5G Cell Towers, and a new 3GPP Release 16 Core that can support network slicing for the 28Ghz spectrum.

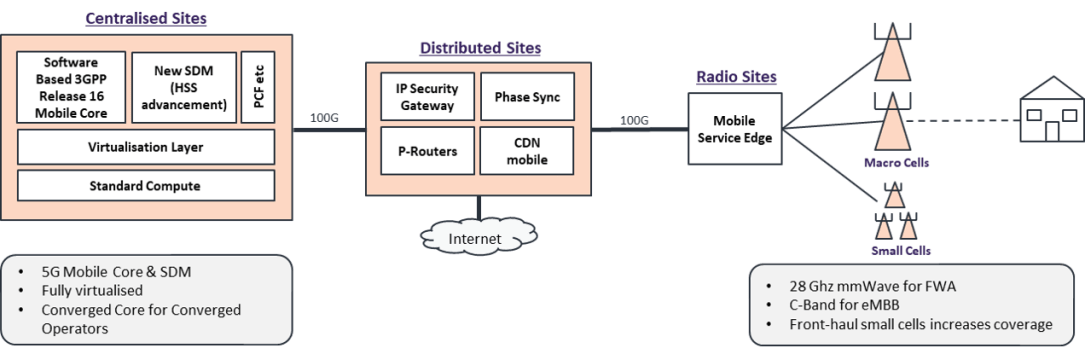

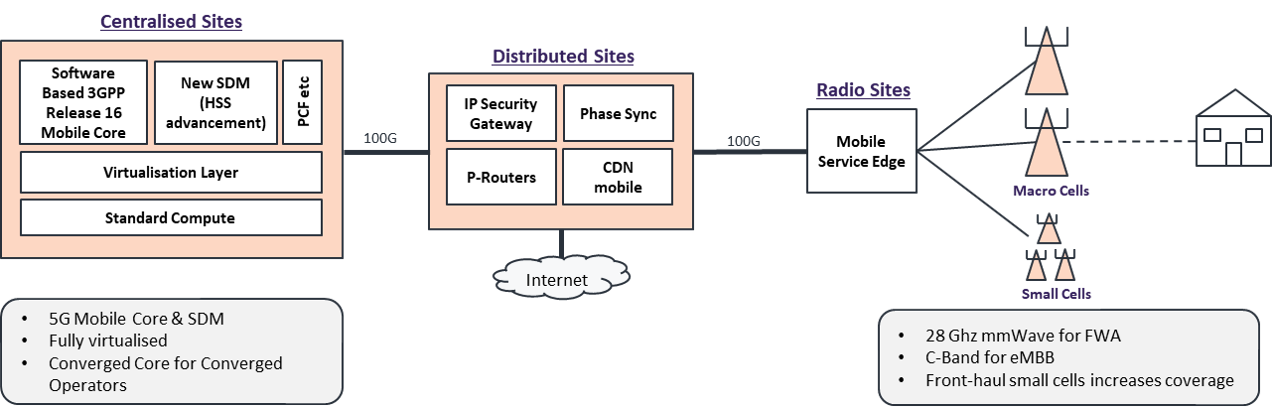

The above diagram shows a logical architecture for a 3GPP Release 16 compliant new mobile core connected through multiple distributed sites connected to radio site gNodeBs delivering FWA service to the home. A new core is not fully necessary, as Verizon are launching already using their channel coding, multiplexing and interleaving technologies. A new mobile core will be advantageous in guaranteeing the QoS for mmWave FWA slices.
The majority cost for FWA is in the delivery of the radio network and mmWave antenna. Higher costs will always be incurred if RAN planning has not been optimised and necessitates 5G small cell in-fill. For this reason mmWave may be better deployed as new sites in a standalone Model 2x configuration. Other costs include upgrading the mobile core but this cost is shared with other 5G use cases. Spectrum licencing is another important cost. Currently mmWave licence spectrum is relatively available, hence lower cost, and more extremely high frequency is being released by national regulators.
To be competitive FWA must be economically viable against fibre delivered to the home. This includes internet peering & CDNs. In regulated territories like the UK that already have Local Loop Unbundling the competitor CSP can consume service from the distributed site. This has been part of the US regulatory framework since the US Telecommunications Act of 1996 that requires ILECs to lease local loops to competitors (CLECs). In an all fibre model the cost of connection is to the premise (FTTP) or home (FTTH). If regulatory dark fibre or open ducts are in place then the competing CSP can consume those services at a regulatory defined price. In the UK that model is only being developed after initial regulatory challenges and in the US the FCC has not extended enforcement of dark fiber offering since 2014. It is therefore suitable for a US mobile carrier to consider 28Ghz as a more efficient distribution mechanism than FTTH if there are no regulated dark fibre or open-duct solutions available. It is also worth considering that the civils part of the delivery of fibre (the dotted FTTH line in the below diagram) can cost as much as 90% of the total service delivery cost.
A final comparison between FTTH and FWA:
Same Costs: Network spine, backhaul and equivalent equipment are the same for FTTH & FWA
Higher FWA Costs: The spectrum licence costs are unique to FWA but due to spectrum availability may not be prohibitive, power & cooling costs are higher for FWA and the maintenance cost of FWA should be higher for exposed antennae
Higher FTTH Costs: The only cost that is higher with FTTH is the civils part of delivery. This cost can be very high because of the complexity of getting wayleaves and permissions and digging up roads.
In conclusion, FWA should be more efficient and cheaper service to deliver as long as the network planning is accurate and does not necessitate continual modification based on further cell deployments.
I’m talking at the TM Forum Middle East Digital Transformation event https://dtme.tmforum.org/speakers/charles-gibbons/ on 5G. It’s great to be invited to share my knowledge of 5G architecture and delivery. I will be covering the roll out of 5G service in the UK and will be specifically covering how knowledge share is critical for successful implementations of 5G.
Focus on 5G Monetisation and the business value and the need for Open APIs for an ecosystem architecture. Telcos do not have a domain right to provide IoT services over 5G. It is important that all CSPs support open APIs for their 5G services including TM Forum, GSMA OpenAPIs, ETSI Mobile Edge Compute APIs, NIST and other more commercial offerings.
BT has started its first live UK trial of 5G based technology in Canary Wharf Square. This is a high capacity zone test as Montgomery Square includes a London Underground entrance and high rise offices. The footfall is in excess of 150k people per day.
High capacity zone testing is a critical part of EE’s 5G launch program, with the first phase of its 5G roll-out targeting “hotspots” across the UK – the places that have the greatest number of people using the most mobile data.
The test hardware and spectrum are much closer to the final commercial deployments that will begin in 2019. Key to the test is a successful FCAPS deployment for live monitoring and reporting on the site and its associated backhaul. BT & EE’s handle 15 million network reporting events a day as part of their streaming architecture.
Mobile Edge Computing (MEC) is a key piece of the 5G architecture (or 5G type claims on a 4G RAN). MEC can already make a huge difference in video latency and quality for video streaming multiple feeds within a sporting environment. For example Intel, Nokia and China Mobile video streams of the Grand Prix at Shanghai International Circuit.
A 5G mobile operator will be introducing virtualised network functions as well as mobile edge computing infrastructure. This creates both opportunities and challenges. The opportunities are the major MEC use cases included context-aware services, localised content and computation, low latency services, in-building use cases and venue revenue uplift.
The challenges include providing the Mobile Edge Compute Platform in a virtualised 5G world. Mobile operators are not normally IaaS / PaaS providers so this may become a challenge.

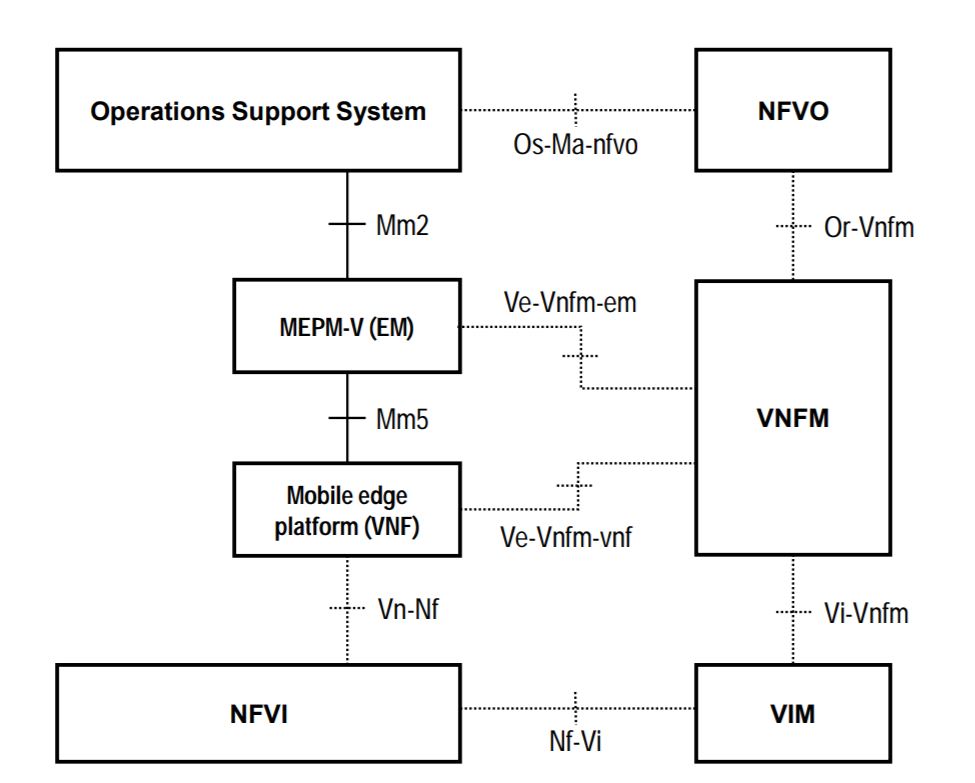

The ETSI 2018 group report Deployment of Mobile Edge Computing in an NFV environment describes an architecture based on a virtualised Mobile Edge Platform and a Mobile Edge Platform Manager (MEPM-V). The Mobile Edge Platform runs on NFVI managed by a VIM. This in turn hosts the MEC applications.
The ETSI architecture seems perfectly logical and reuses the NFVO and NFVI components familiar to all virtualisations. In this architecture the NFVO and MEPM-V act as what ETSI calls the Mobile Edge Application Orchestrator” (MEAO) for managing MEC applications. The MEAO uses NFVO for resource orchestration and for the element manager orchestration.
The difficulty still lies in implementing the appropriate technologies to suit the MEC use cases. Openstack (or others) may provide the NFVI and Open Source Mano (or others) may provide the NFVO; however what doesn’t exist is the service exposure, image management and software promotion necessary for a company to on-board MEC.
If MEC does take off what is the likelihood that AWS, GCP and Azure will extend their footprint into the telecom operators edge?
